Μηχανή συγκόλλησης λέιζερ με μπαταρία

6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

All Category

μηχανή συγκόλλησης σημείων μπαταριών

Γραμμή συναρμολόγησης μπαταριών

Μηχανή συγκόλλησης λέιζερ με μπαταρία

Εξαρτήματα μπαταριών

Επικοινωνήστε μαζί μας

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

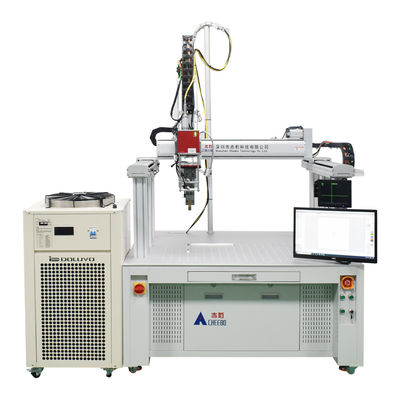

6000W Output Power 1080 Wavelength Fiber Laser Welding Machine with 1 Year Warranty for Battery Welding

Brand Name:	CHEEO
MOQ:	1
τιμή:	$10,000-11,000

Detail Information

Product Description

Detail Information

Τόπος καταγωγής:

Guangdong, Κίνα

ισχύς εξόδου:

6000W

Μήκος κύματος:

1080

Βάρος:

500 κιλά

Ισχύς λέιζερ:

1500W/2000W/3000W/4000W/6000W

Ταχύτητα συγκόλλησης:

10-100mm/s

Ακρίβεια θέσης:

± 0,05mm

Ρυθμιστική συχνότητα:

30-5kHz

Ρυθμιζόμενο εύρος ισχύος:

10-100%

Ακρίβεια επανατοποθέτησης:

± 0,01mm

Ταχεία ακρίβεια θέσης:

1000mm/sec (xyaxis) 、 500mm/sec (Zaxis)

Ποιότητα δέσμης:

<1.4㎡

Σταθερότητα ισχύος:

≦ 3%

Εστιακό μήκος εστίασης με λέιζερ:

F=180mm

Μέγιστο μέγεθος κατεργασίας:

800*600mm/1000*800

Συνολική διάσταση:

L1343XW1454XH22235mm

Επισημαίνω:

6000W Output Power Fiber Laser Welding Machine

1080 Wavelength Fiber Laser Welding Machine

1 Year Warranty Fiber Laser Welding Machine

Product Description

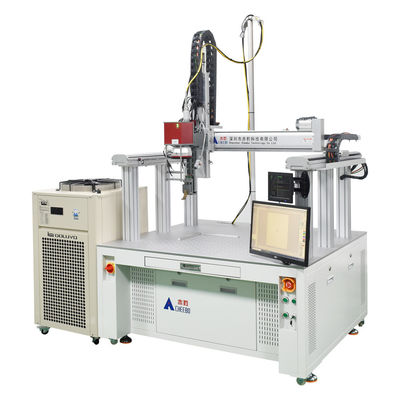

Fully Automatic Fiber Laser Welding Machine

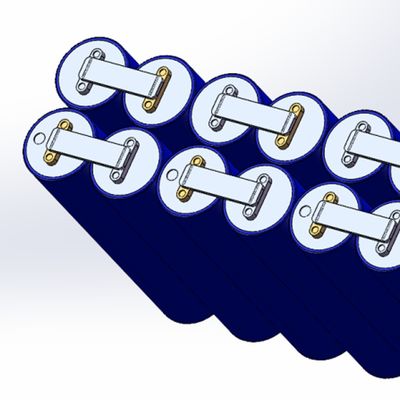

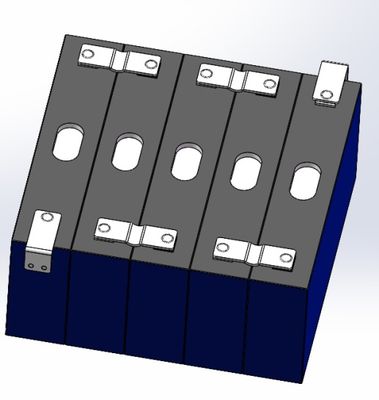

This table top square battery pack fiber laser welding machine integrates important components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly suited for lithium battery welding processes.

Key Features

Advanced fiber laser source specifically designed for high reflective materials (aluminum)

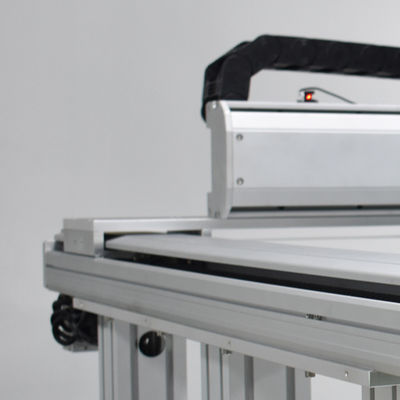

Gantry machine tool with excellent rigidity and stability
High beam quality, stability, reliability, and low operating costs
High lifespan gantry dual drive motion platform with large welding range
Precision guide rail transmission with high response servo motors
Fine laser spots with high melting depth and smooth welding surface
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8 KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Gallery

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced sales team can recommend the best solution.

Q: How to install and operate the machine?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components - 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No minimum order quantity - we fully support orders from 1 to 100+ units.

Q: How is your quality control?

A: Quality first. Each unit undergoes 20+ tests, with final QC verifying welding performance before shipment.

Q: What if there's a problem with the machine?

A: Contact us immediately - do not attempt repairs yourself. We guarantee response within 24 hours to resolve any issues.
