Μηχανή συγκόλλησης λέιζερ με μπαταρία

Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

All Category

μηχανή συγκόλλησης σημείων μπαταριών

Γραμμή συναρμολόγησης μπαταριών

Μηχανή συγκόλλησης λέιζερ με μπαταρία

Εξαρτήματα μπαταριών

Επικοινωνήστε μαζί μας

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

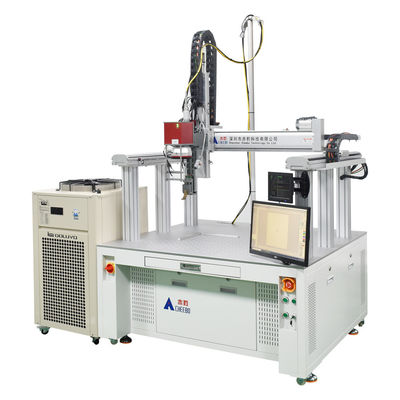

Automatic 6000W Battery Laser Welding Machine for 18650 21700 Prismatic Battery Packs with High Precision

Brand Name:	CHEEO
MOQ:	1
τιμή:	$10,000-11,000

Detail Information

Product Description

Detail Information

Τόπος καταγωγής:

Guangdong, Κίνα

ισχύς εξόδου:

6000W

Βάρος:

500 κιλά

Ισχύς λέιζερ:

1500W/2000W/3000W/4000W/6000W

Ταχύτητα συγκόλλησης:

10-100mm/s

Ακρίβεια θέσης:

± 0,05mm

Μήκος κύματος λέιζερ:

1080

Ρυθμιστική συχνότητα:

30-5kHz

Ρυθμιζόμενο εύρος ισχύος:

10-100%

Ακρίβεια επανατοποθέτησης:

± 0,01mm

Ταχεία ακρίβεια θέσης:

1000mm/sec (xyaxis) 、 500mm/sec (Zaxis)

Ποιότητα δέσμης:

<1.4㎡

Σταθερότητα ισχύος:

≦ 3%

Εστιακό μήκος εστίασης με λέιζερ:

F=180mm

Μέγιστο μέγεθος κατεργασίας:

800*600mm/1000*800

Συνολική διάσταση:

L1343XW1454XH22235mm

Επισημαίνω:

6000W Battery Laser Welding Machine

18650 Laser Welding Machine

21700 Battery Laser Welder

Product Description

Automatic Prismatic Battery Pack Laser Welder

Lithium Polymer 18650 21700 Battery Laser Welding Machine for Pouch Cell 3000w

This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. It can perform welding of any planar geometric shape trajectory including points, lines, and circles. This efficient, safe, and stable high-power fiber laser welding machine excels in lithium battery welding processes.

Key Features

Continuous galvanometer laser welding machine uses advanced fiber laser as the laser source, specifically designed for high reflective materials (aluminum)
Combined with our company's independently developed gantry machine tool for excellent rigidity and stability
Fiber lasers offer high beam quality, stability, reliability, low operating costs, and compact size
High lifespan gantry dual drive motion platform with large surface travel welding range
Precision guide rail transmission with high response servo motors for fast, accurate operation
Laser welding produces fine spots, high melting depth, small taper, and smooth surfaces without bubbles
PC industrial computer with user-friendly welding CNC programming system
Adjustable laser power with low power consumption and minimal maintenance requirements
Automatic top pressure welding device reduces welding fixture requirements
Optional CCD visual positioning system and automatic focal length measurement system

Technical Specifications

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details

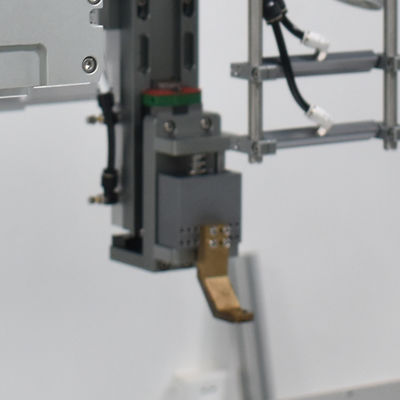

Welding Point Monitoring, Autofocus

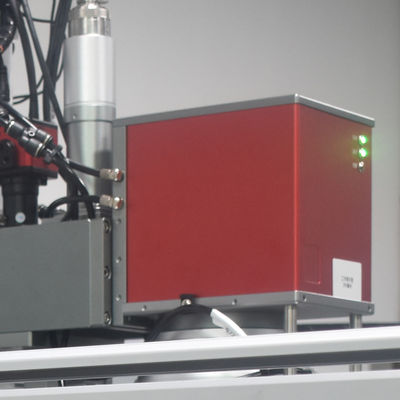

High Precision Welding Joint of Vibrating Mirror

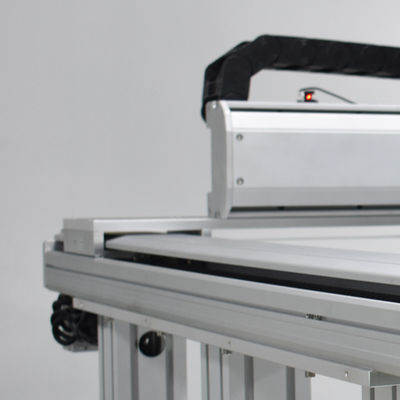

Rail Module

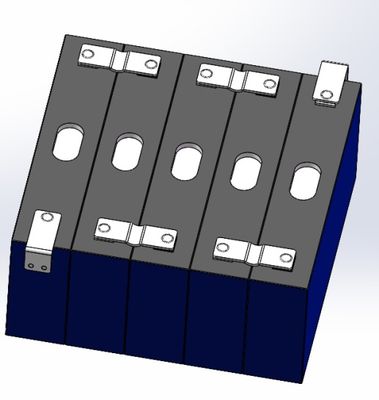

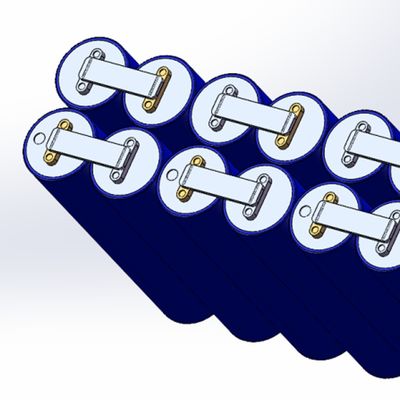

BWT Laser Welder - Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide us with: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team can recommend the best solution.

Q: How to install and run the machine?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals for minor components. 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No minimum order quantity. We support orders from 1 unit to 100+ units with equal dedication.

Q: How is your quality control?

A: Quality first. Each unit undergoes 20+ tests, with final QC testing of welding performance before shipment.

Q: What if there's a problem with the machine?

A: Contact us immediately. Do not attempt repairs yourself. We respond within 24 hours to resolve any issues.
